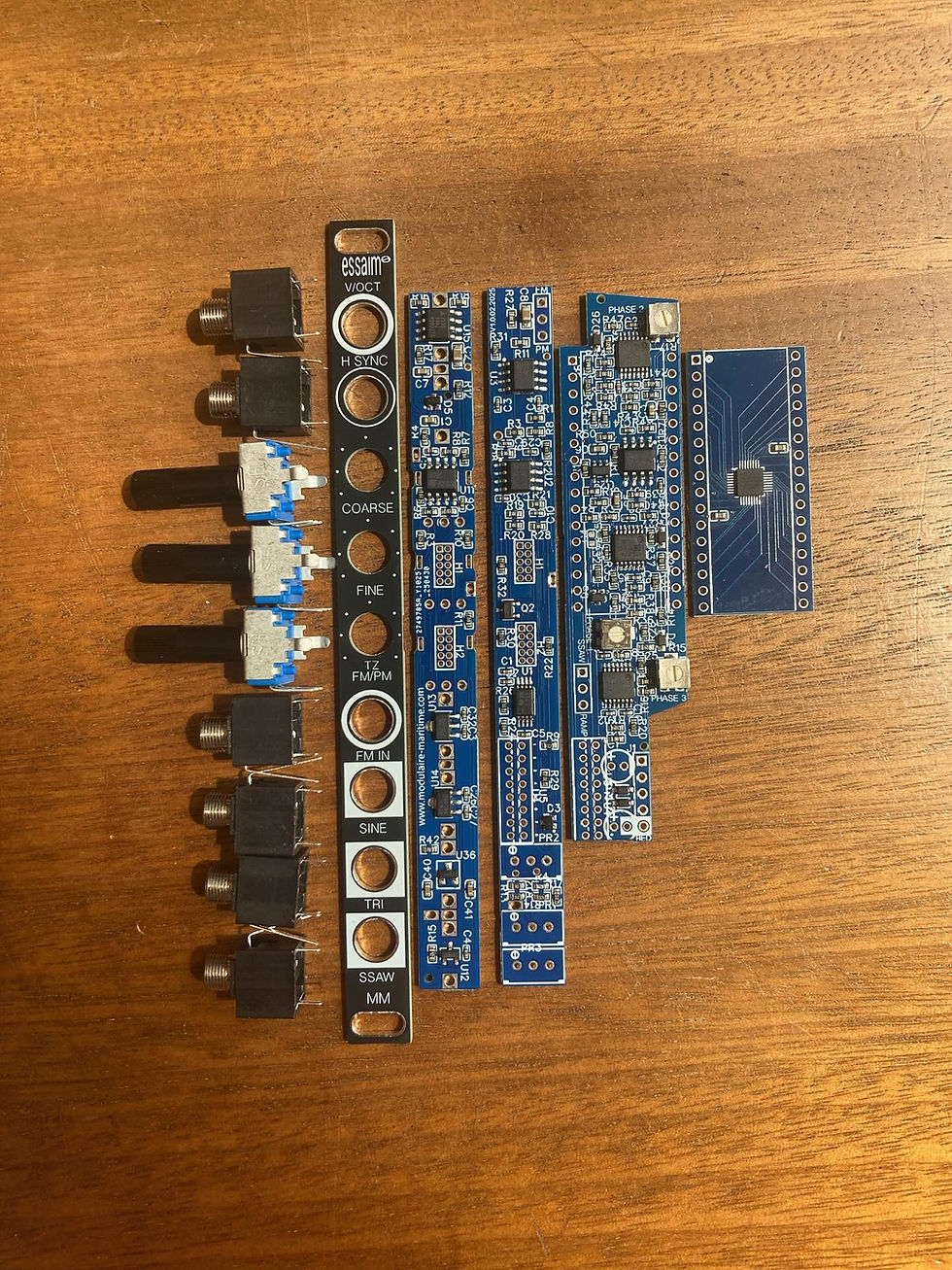

ESSAIM ø

Happy to introduce you this guy - « ESSAIM ø » Voltage Controlled Oscillator. Now the last thing one should do is to get fooled by this guy’s size (2hp) since it packs features never seen in this format - namely Super Saw

(« swarm ») and Thru-Zero Frequency Modulation / Phase Modulation!

This VCO provides:

Sine

Triangle,

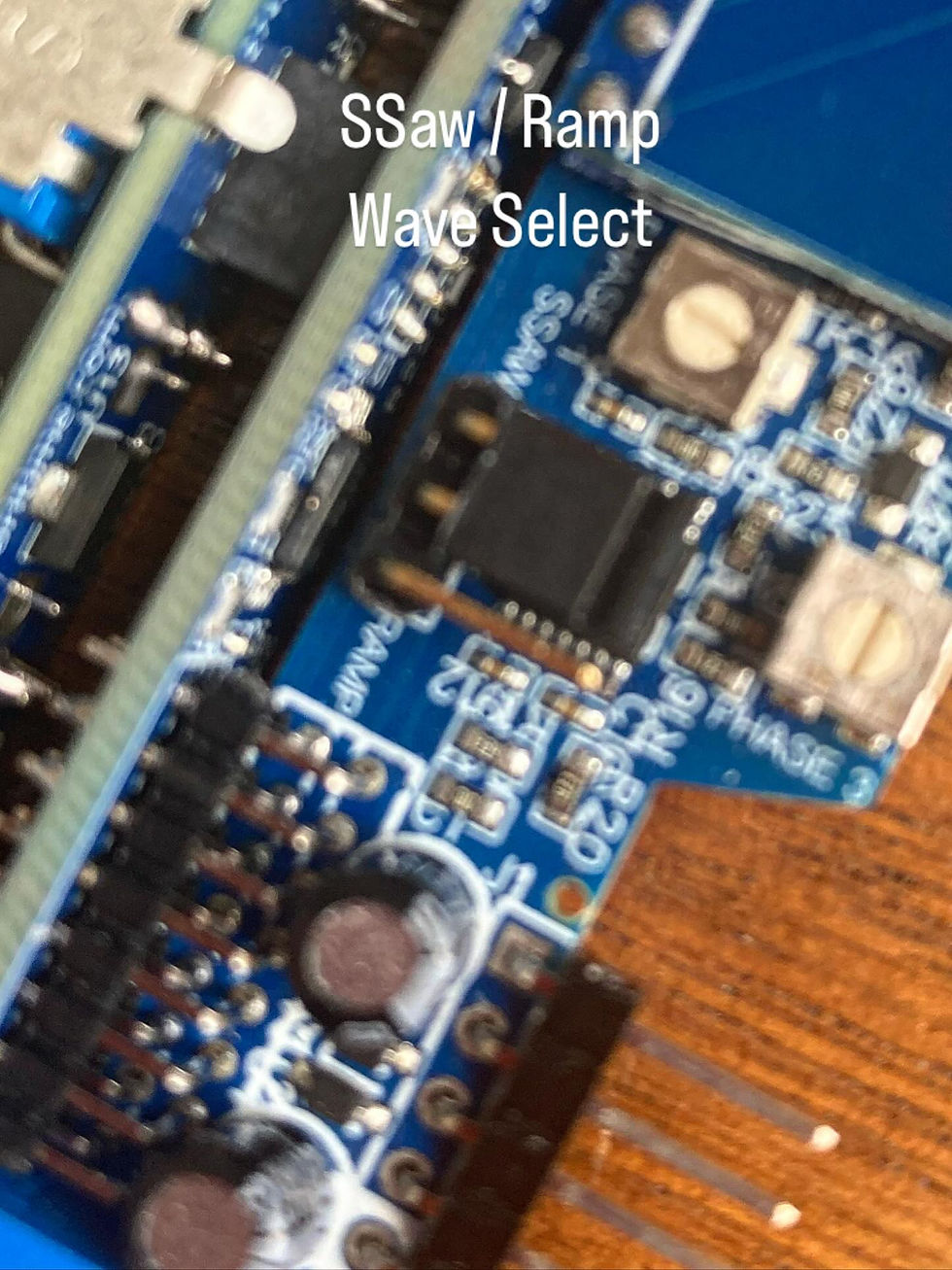

Ramp (or SSaw, selectable on the side of the module) outputs

Hard Sync

Tracks V/Oct. up to 8 octaves

Temperature stability

 2hp, exists with Black or Silver front

 Reverse voltage protected

Power consumption. specs: 58mA +12V50 mA -12V

42 mm deep (48mm with poxer cable attached)

MM packed features in this micro oscillator that can’t be found together even in big complex vco s ✌️ Deep frequencymodulation that is perfectly controllable with thruzero capability and with phasemodulation option ☑️

Essaim ø is a special VCO containing phasers which can produce lively animated waveforms - this concerns mainly the sawwave outputting a big swarm of waves 🌊 to many much more powerful than regular PWM

(This module is also thought 💭 to be a perfect partner of Tarot LC

who already knows lots of tricks with pwm)

The sine and triangle are more preserved to provide wave shaping friendly waveforms to Tarot.

You can explore and adjust phasers to your taste if wanted, on the side of the module.
